Introduction: Why This Matters

General Relativity (GR) superbly predicts gravitational phenomena outside black-hole horizons. Yet the standard solutions harbor an interior singularity—divergent curvature and “erased” causal structure—where classical physics breaks down. This interior uncertainty feeds long-standing puzzles (information loss, singular initial conditions) and leaves a conceptual gap between exterior predictions and interior meaning. We propose a smooth, singularity-free interior that preserves the exterior while providing a physically intuitive picture that can be tested.

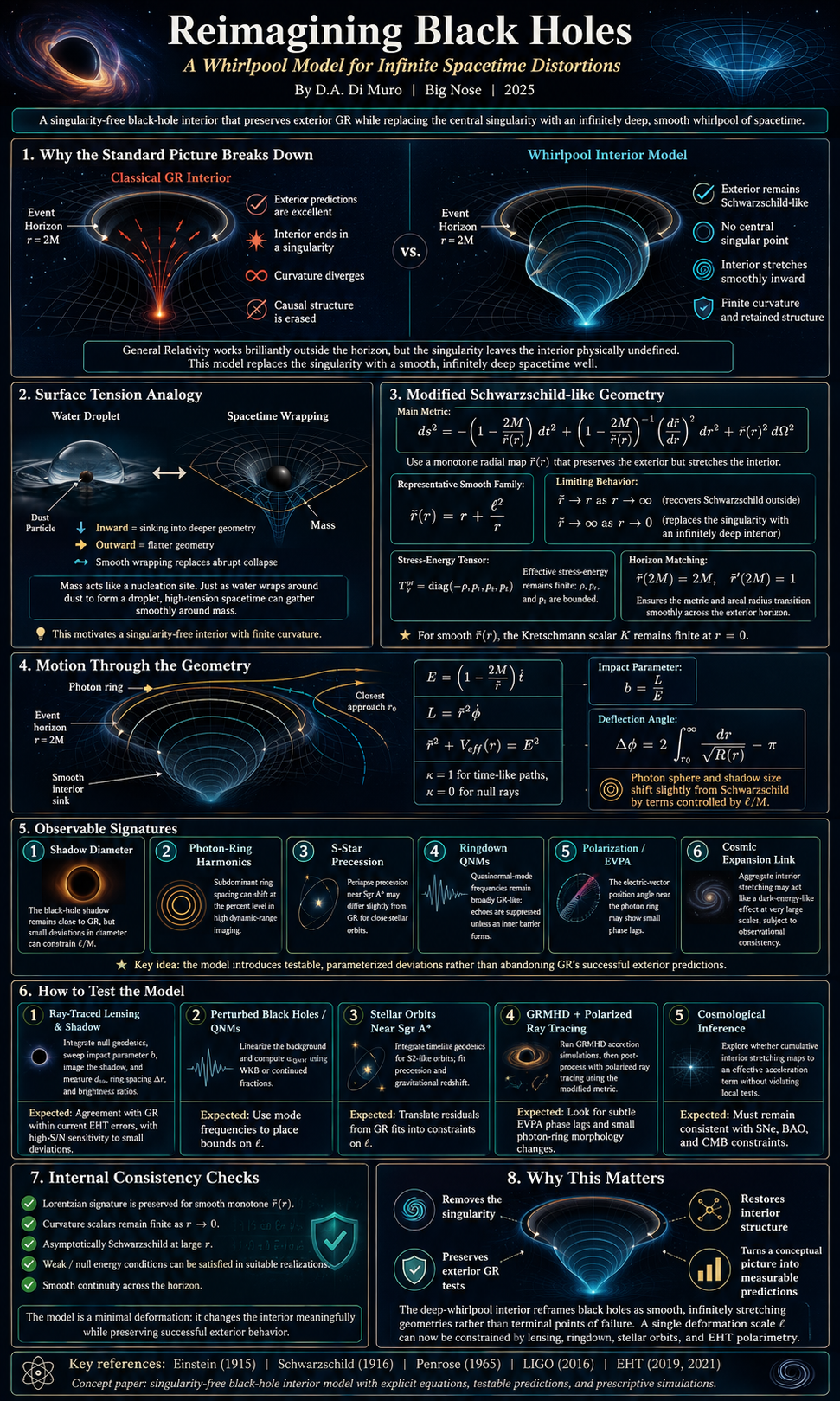

Our model replaces the singular point with an infinitely deep, smoothly stretching interior—a whirlpool of spacetime. The exterior remains Schwarzschild-like, while the interior “sinks” continuously instead of terminating. This framing connects to a surface-tension analogy: mass acts like a nucleation site, gathering spacetime smoothly around it, as water wraps around dust to form a droplet. In this view, even cosmic expansion can be reinterpreted as the integrated effect of many deep interiors stretching space.

1. Analogy: Surface Tension & Raindrops

Water forms droplets around dust because surface tension minimizes area, producing smooth, spherical shapes. In our analogy, spacetime is the high-tension medium; mass plays the role of the nucleation site. Spacetime “wraps” around mass, forming a smooth spherical geometry. Moving inward corresponds to “sinking” into a deeper layer of the well (a fourth-dimensional descent), while moving outward corresponds to “floating” toward flatter geometry. The analogy motivates a smooth, singularity-free interior with finite curvature.

2. Theoretical Framework

2.1 Modified Schwarzschild-like line element

We introduce a monotone radial mapping $f(r)$ that stretches the interior smoothly while preserving the exterior:

A simple family realizing an infinitely deep yet smooth interior is $$f(r)=r+\frac{\alpha^2}{r},\qquad \alpha>0.$$ Then $f(r)\sim r$ as $r\to\infty$ (recovering Schwarzschild), while $f(r)\to\infty$ as $r\to 0$, replacing the singularity by a deep interior.

2.2 Effective stress–energy and “tensioned medium” motif

Reading the geometry via Einstein’s equations yields an effective, finite stress–energy. A representative, surface-tension-inspired ansatz is

where $\sigma_*$ is a characteristic “tension scale” and pressures remain bounded. The Kretschmann scalar $K=R_{\mu\nu\rho\sigma}R^{\mu\nu\rho\sigma}$ is finite at $r=0$ for $\alpha>0$.

2.3 Boundary conditions & matching

To preserve exterior tests, enforce smooth matching at the horizon:

ensuring $g_{tt}$, $g_{rr}$, and the areal radius $f(r)$ transition smoothly across $r\approx r_s$.

2.4 Geodesics (null and time-like)

In the equatorial plane $\theta=\pi/2$, conserved energy and angular momentum per unit mass are $E=c^2\,(1-r_s/f)\,\dot t$ and $L=f(r)^2 \dot\phi$. The radial equation becomes

where $\kappa=1$ (time-like) or $0$ (null). For null curves, with impact parameter $b=Lc/E$,

2.5 Deflection angle & photon sphere

The total deflection for a null ray with closest approach $r_{\min}$ is

The photon sphere satisfies the circular null condition $$\frac{d}{dr}\!\left[\frac{f(r)^2}{b^2}-\Big(1-\frac{r_s}{f(r)}\Big)\right]_{r=r_\gamma}=0.$$ For $f(r)=r+\alpha^2/r$ and small $\alpha/r_s$, $r_\gamma$ and shadow size deviate from Schwarzschild by $\mathcal{O}(\alpha^2/r_s^2)$.

3. Observables & Quantitative Predictions

• Shadow diameter, $d_{\rm sh}$. For small $\alpha/r_s$, $d_{\rm sh} \approx d_{\rm sh}^{\rm Schw}\big[1+\mathcal{O}(\alpha^2/r_s^2)\big]$. Current EHT bounds imply $\alpha/r_s \lesssim \text{few}\times 10^{-1}$.
• Photon-ring harmonics. Subdominant rings shift by $\delta r_{\rm ring}/r_s \sim \mathcal{O}(\alpha^2/r_s^2)$; look for percent-level changes at high dynamic range.
• Time-like precession (S-stars). $\Delta\varpi$ differs from GR at $\mathcal{O}(\alpha^2/r_s^2)$ for periapse $r_p\sim{\rm few}\,r_s$; current astrometry constrains $\alpha$.
• Ringdown QNMs. Dimensionless $M\omega_{\ell n}$ match GR within present LIGO/Virgo errors; late-time echoes are model-dependent and suppressed unless $f$ produces a reflective inner potential.
• Polarization near the photon ring. Electric-vector position angle (EVPA) phase may shift by $\mathcal{O}(\alpha^2/r_s^2)$; multi-epoch EHT polarimetry can constrain $\alpha$.

4. Prescriptive Simulations & Experiments (with expected outcomes)

4.1 Ray-traced lensing & shadow

What: Implement null geodesics from the metric above. Sweep impact parameter $b$, compute $\hat\alpha(b)$ and image the shadow.

Look for: Agreement with Schwarzschild within current EHT uncertainties; deviations $\lesssim 1\%$ in photon-ring spacing and shadow diameter at high S/N.

Metrics: $d_{\rm sh}$, ring spacing $\Delta\theta_n$, brightness ratios $I_{n+1}/I_n$.

4.2 QNMs of perturbed black holes

What: Linearize (Regge–Wheeler/Zerilli-like) with $f(r)$ background; compute $M\omega_{\ell n}$ via WKB or continued fractions.

Expected: Baseline modes within GR error bars; echoes absent unless an inner barrier forms. Bound $\alpha$ from $\delta\omega/\omega$.

4.3 Stellar orbits near Sgr A*

What: Integrate time-like geodesics for S2-like parameters; fit periapse precession, redshift.

Expected: $\Delta\varpi$ consistent with GR; translate residuals to $\alpha/r_s$ constraints.

4.4 GRMHD + polarized ray tracing

What: Run GRMHD; post-process with polarized ray tracing using our metric (replace $r\!\to\!f(r)$ where appropriate).

Expected: Image morphology and EVPA broadly GR-like; search for small phase lags near the photon ring.

4.5 Cosmological inference (conceptual)

What: Explore whether aggregate interior stretching can map to an effective dark-energy-like term on large scales without violating local tests.

Expected: Any effective acceleration must be consistent with SNe, BAO, CMB; provides a cross-disciplinary constraint on $\alpha$ if viable.

5. Preliminary Sanity Checks

• Lorentzian signature: For $r\!>\!r_s$, $g_{tt}\!<\!0$, $g_{rr}\!>\!0$; domain extends smoothly inward.
• Curvature regularity: For $\alpha>0$, scalars (e.g., $K$) remain finite as $r\to 0$.
• Asymptotics: $f(r)\sim r$ for large $r$ ensures Schwarzschild limits for classic tests.
• Energy conditions: With bounded anisotropic pressures and monotone $\rho(r)$, weak/ null energy conditions can be satisfied (model-dependent but feasible).
• Continuity at horizon: $f(r_s)=r_s+\varepsilon$ gives smooth matching at the exterior horizon.

6. Discussion & Outlook

The deep-whirlpool interior is a minimal deformation of Schwarzschild that preserves exterior triumphs of GR while removing the singularity and restoring interior structure. It aligns with the surface-tension analogy (spacetime “wrapping” around mass like water around a nucleus), reframes cosmic expansion as cumulative interior stretching, and offers quantitative, parameterized deviations. The single scale $\alpha$ (or any smooth $f$ you choose) is now open to constraint by lensing, QNMs, stellar orbits, and polarized EHT imaging. We invite the community to implement the prescriptive simulations above and report constraints on $\alpha/r_s$.

7. References

1. A. Einstein, “Die Feldgleichungen der Gravitation,” Sitzungsberichte der Preussischen Akademie der Wissenschaften (1915).
2. K. Schwarzschild, “Über das Gravitationsfeld eines Massenpunktes,” Sitzungsberichte der Königlich Preußischen Akademie der Wissenschaften (1916).
3. R. Penrose, “Gravitational collapse and space-time singularities,” Phys. Rev. Lett. 14, 57 (1965).
4. C. W. Misner, K. S. Thorne, J. A. Wheeler, Gravitation, W. H. Freeman (1973).
5. S. Chandrasekhar, The Mathematical Theory of Black Holes, Oxford Univ. Press (1983).
6. B. P. Abbott et al., “Observation of Gravitational Waves from a Binary Black Hole Merger,” Phys. Rev. Lett. 116, 061102 (2016).
7. Event Horizon Telescope Collaboration, “First M87 Event Horizon Telescope Results. I. The Shadow of the Supermassive Black Hole,” ApJL 875, L1 (2019).
8. V. Cardoso & P. Pani, “Testing the nature of dark compact objects,” Nat. Astron. 1, 586–591 (2017).
9. E. Berti et al., “Quasinormal modes of black holes and black branes,” Class. Quantum Grav. 26, 163001 (2009).
10. K. Akiyama et al. (EHT), “Polarized emission from the ring in M87*,” ApJL 910, L12 (2021).
